35" Ultra-Wide Bar LCD Display with 3000:1 Contrast Ratio and 500cd/m² Brightness for Retail and Transportation

Name: 35" Ultra-Wide Bar LCD Display with 3000:1 Contrast Ratio and 500cd/m² Brightness for Retail and Transportation
Brand: Shenzhen Qunmao Display Technology Co., Ltd.
SKU: शेल्फ-एज डिस्प्ले
Price: 487.00 USD
Availability: InStock

ब्रांड नाम:	Qtenboard
मॉडल नंबर:	शेल्फ-एज डिस्प्ले
एमओक्यू:	1
प्रसव का समय:	5-10 दिन
भुगतान की शर्तें:	टी/टी

विस्तृत जानकारी

उत्पाद वर्णन

विस्तृत जानकारी

प्रमुखता देना:

Transportation Ultra-Wide Bar LCD Display

500cd/m2 Ultra-Wide Bar LCD Display

Retail Ultra-Wide Bar LCD Display

उत्पाद वर्णन

Qtenboard 35" Ultra-Wide Bar LCD Display

High Contrast 3000:1 for Retail Shelves & Bus Stations | 1-Year Warranty

Commercial Bar LCD Display Series

Professional-grade 23.1"-37" commercial monitors engineered for retail and transportation applications with 500cd/m² brightness and 178° viewing angles.

Product Overview

Choose eco-friendly commercial displays with the Qtenboard Bar LCD Display series (23.1"-37")—built for sustainability without sacrificing performance. Low power consumption cuts energy costs and carbon footprint, while RoHS certification ensures no harmful materials.

Its durable design reduces replacement frequency, and we offer CKD/SKD supply to minimize shipping emissions (smaller packages = less fuel use). A 1-year warranty extends product life, and OEM/ODM supports eco-branding alignment.

Core Advantages

Resolution versatility: 4K UHD (28"/37") + ultra-wide (29"/35") + HD basics
Display precision: 3000:1 contrast ratio with 16.7 million colors for lifelike visuals
Complete interface options: HDMI/VGA/USB/AV/BNC (HDMI 2.0 on premium models)
Environmental adaptability: 0℃~50℃ operating temperature with low power consumption

Technical Specifications

Specification Category	Detailed Parameters

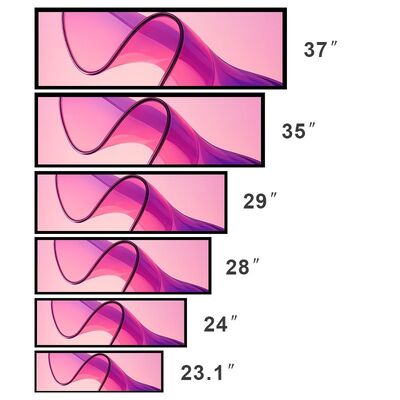

Size Range	23.1", 24", 28", 29", 35", 37"
Active Display Area	Narrow Screen Models: 585.6(H)×48.19(V)mm, 878.4(H)×48.19(V)mm Standard Screen Models: 597.888(H)×112.104(V)mm, 699.84(H)×131.22(V)mm, 709.84(H)×202.22(V)mm, 903(H)×257(V)mm
Resolution	HD Basic Models: 1920×360, 1920×1080 Ultra-Wide Screen Models: 2560×1080 4K UHD Models: 3840×2160
Display Performance	Brightness: 500cd/m² Contrast Ratio: 3000:1 Viewing Angle: 178°(H)/178°(V) Response Time: 5ms Color: 16.7 million
Interface Configuration	Basic Interface Set: HDMI, VGA, USB, AV, BNC Premium Upgraded Interfaces: HDMI 2.0, USB 3.0 (28", 37" models)
Power & Consumption	Power Supply: AC100-240V, 50/60Hz Power Consumption: ≤30W (23.1"), ≤35W (24"), ≤40W (29"), ≤45W (28", 35"), ≤50W (37")
Operating Environment	Operating Temperature: 0℃~50℃ Storage Temperature: -20℃~60℃
Mounting Options	Wall Mount, Stand Mount (all models with included accessories)
Certifications	CE, RoHS, FCC

Industry Applications

Retail Industry

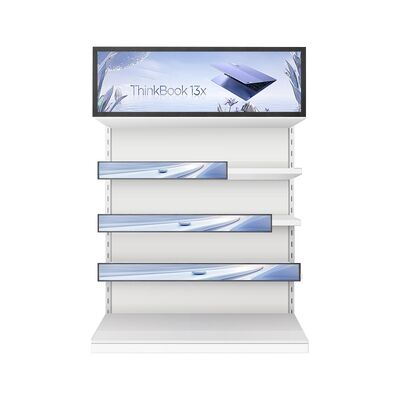

Price tag display for supermarket shelves
Promotion information showcase in convenience stores
Brand culture promotion in clothing stores

Transportation Sector

Station information broadcast inside buses
Route guidance in subway stations
Baggage claim area instructions in airports

Catering Industry

Digital menu display in restaurants
New product recommendations in cafes
Discount promotion in fast-food restaurants

Commercial Premises

Shopping mall wayfinding systems
Office building floor indicators
Information display in hotel lobbies

Customization Services

OEM/ODM Services

Brand customization: Custom logo printing according to customer specifications
Appearance design customization: Personalized enclosure design solutions
Function customization: Add or remove interfaces and special functions as needed
Software customization: Development of customized display control software

CKD/SKD Supply Models

CKD (Complete Knock-Down): All components provided for independent assembly
SKD (Semi-Knock-Down): Partially assembled components to streamline production
Flexible packaging solutions: Custom packaging based on transportation requirements
Technical support: Complete assembly guidelines and technical documentation

Frequently Asked Questions

What is the product warranty period?

We provide a one-year warranty service. During this period, products with quality issues caused by non-human factors receive free repair or replacement services.

Do you support product customization?

Yes, we fully support OEM/ODM customization services, including brand logo customization, appearance design, function configuration, software systems, and other customization needs. We provide tailored solutions according to specific customer requirements.

What supply models do you offer?

We support two supply models: CKD (Complete Knock-Down) and SKD (Semi-Knock-Down), meeting the production and assembly needs of different customers. Complete technical support and assembly guidance are provided.

What installation methods do the products support?

All models support wall-mounted installation and stand installation. Corresponding installation accessories are included, making installation simple and convenient while optimizing space utilization.

What is the operating temperature range of the product?

The product operates within a temperature range of 0℃~50℃ and can be stored at -20℃~60℃, adapting to most indoor and outdoor commercial environments.

What certifications do the products have?

All products have passed CE, RoHS, and FCC international certifications, complying with global quality standards and environmental requirements for safe export to international markets.

What is the delivery time for sample orders?

Sample orders are typically produced and delivered within 3-5 working days. Bulk order delivery times depend on quantity and can be negotiated with our sales team.

What interfaces do the products support?

Products feature comprehensive interfaces including HDMI, VGA, USB, AV, and BNC. Premium models support HDMI 2.0 and USB 3.0 high-speed interfaces to accommodate various device connection requirements.

How to obtain a product quotation?

Contact our sales team through our official website, email, or online consultation. Provide the required product model, quantity, and specific requirements for a detailed quotation within 24 hours.
